Atomic Force Microscopy (AFM)

Atomic Force Microscopy (AFM)

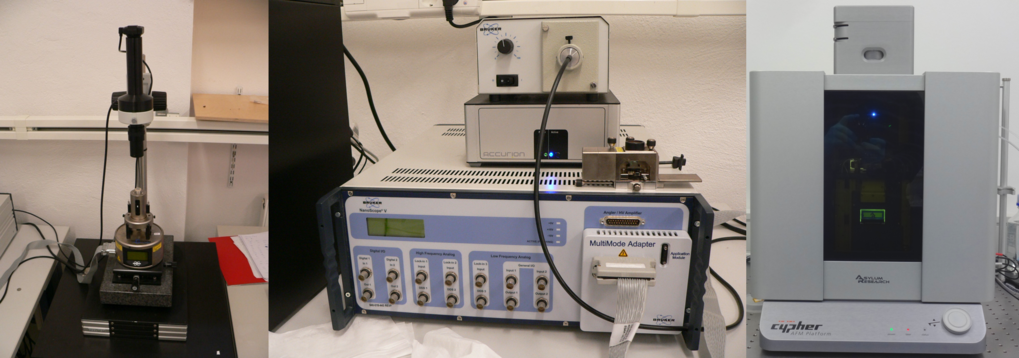

Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM. — Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM.

Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM.

Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM. — Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM.

Bruker Multimode 8 AFM (left) with its Bruker Nanoscope V accessory (center). Asylum Research Cypher AFM (right) for electrochemical AFM.

Bruker Multimode 8 AFM

AS-12 Scanner
- 2.5 µm Z range
- 10µm X 10µm XY range
- Probe holder for AFM in air
Nanoscope V controller
STM option
Electrochemical Cell
- Liquid probe holder with electrochemical contacts
- Bruker Universal Biopotentiostat

Asylum Research Cypher AFM

Scan Range
- X and Y Range: 30 μm
- Z Range: > 5 μm
Environmental control AFM/STM
Electrochemical AFM

SPECS NAP-STM/AFM

Available at UHV system 2 and 4
- AFM Kolibri sensor
- Working pressure: up to 100 mbar
- Working temperature: LN₂ - 750 K

SPECS SPM Aarhus 250 EVT

STM/AFM (12 K - 300 K)
Helium flow cryostat-cooled manipulator
